Attenuation |
|
1 ∼ 10, 15, 20, 30 dB |
|
|
|
|
|
|
|
|
|
Temperature Coefficient (TCR) |
|
± 75 ppm/degree C |
|
|
|
|
|
|
|
|
|
Power |
|
2 Watts |
|
|
|
|
|
|
|
|
|
Substrate |
|
Alumina ceramic |
|
|
|
|
|
|
|
|
|
Resistive Element |
|
RuO2 thick film |
|
|
|
|
|
|
|
|
|
|
|
|
|
 |
|
|
|
|
|
Attenuation
|
|
Frequency Range
|
|
Return Loss |
|
V.S.W.R |
|
Power |
|
Remark |
|
|
|
|
|
|
|
1 ∼ 9 dB |
|
DC ~ 6GHz |
|
≥ 27 dB |
|
≤ 1:1:1 |
|
2W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
10 dB |
|
DC ~ 3GHz |
|
≥ 27 dB |
|
≤ 1:1:1 |
|
2W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
15 dB |
|
DC ~ 3GHz |
|
≥ 27 dB |
|
≤ 1:1:1 |
|
2W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
20 dB |
|
DC ~ 3GHz |
|
≥ 27 dB |
|
≤ 1:1:1 |
|
2W |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
※ Attenuation value는 주문자 요구에 따라 생산 가능합니다. |
|
|
 |
|
|
 |
|
|
|
|
|
|
|

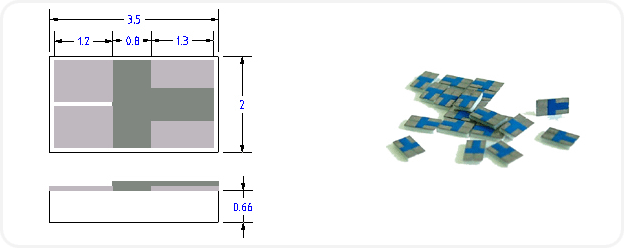

Part No. |
|
Power (Watts) |
|
L (mm) |
|
W (mm) |
|
P (mm) |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
